Flexible VLAN Division
In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network. Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.
Surge Protection Ensuring Product Stability
The 6KV surge protection of the port reduces the probability of being damaged by surges and improves the customer’s network stability.
MANET for Switches Allowing One-step Project Management
RG-NBS3100 can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports MANET for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.
Ruijie Cloud App/ Ruijie Cloud Platform Remote Management
RG-NBS3100 not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.

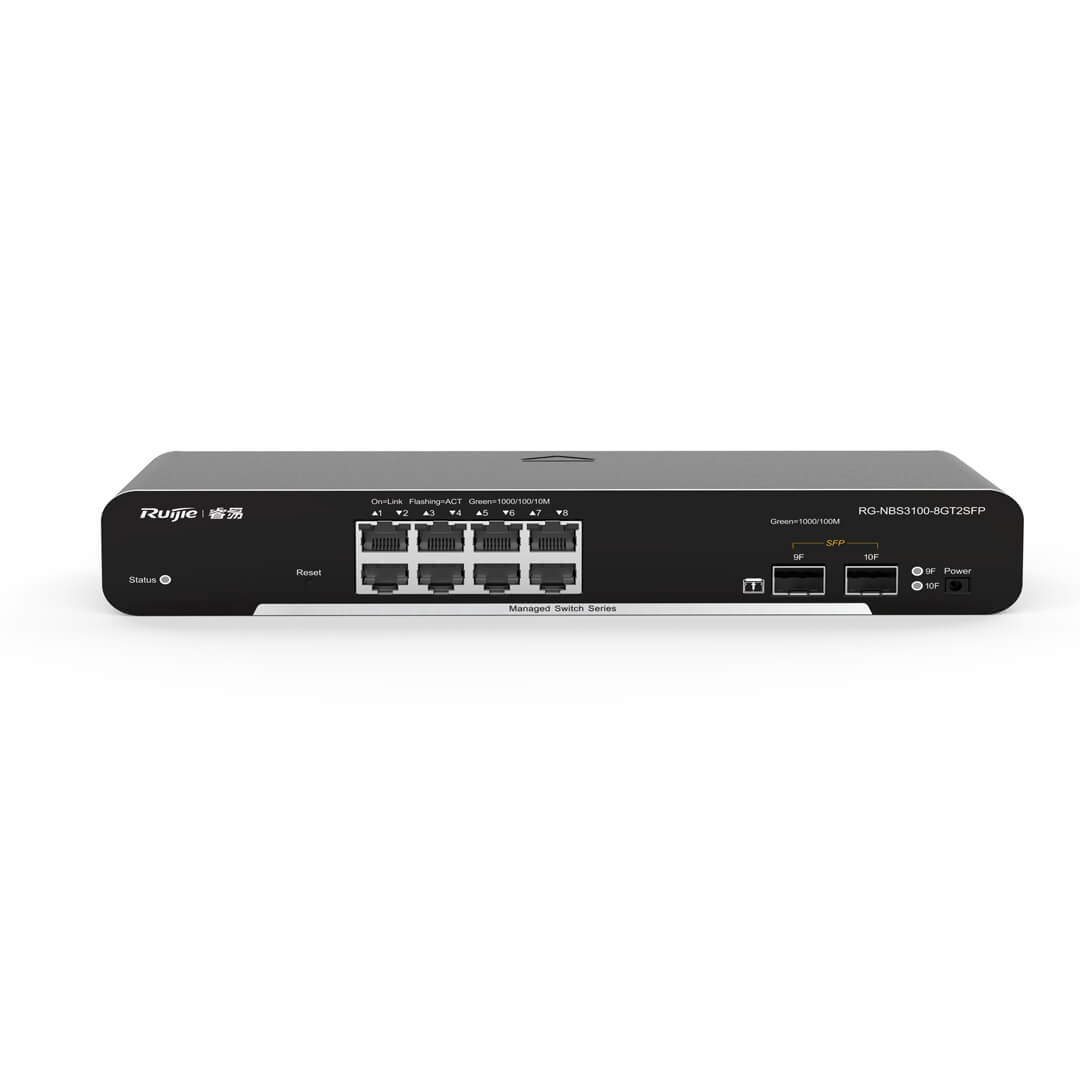

Fixed ports: 8 10/100/1000Base-T ports (support PoE and PoE+), 2 SFP 1000Base-X ports, 125W PoE power

Switching capacity: 192Gbps

Packet forwarding rate: 15Mpps

MAC address: Support static MAC address, MAC address filtering

MAC address table size: 8K

Number of VLANs: 4094
