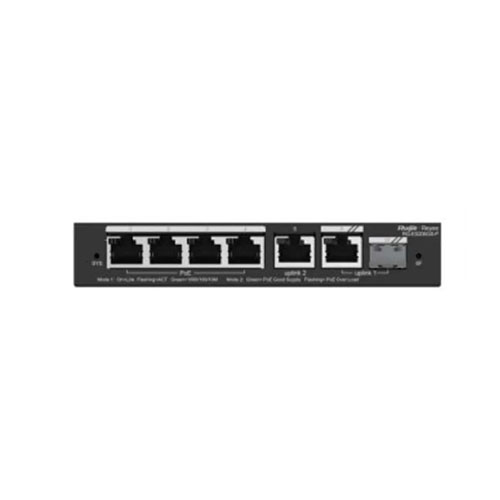

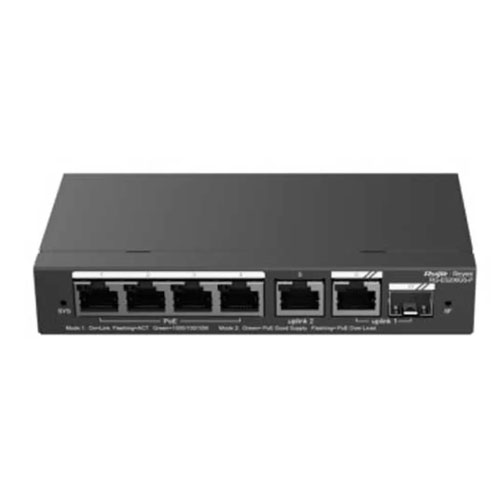

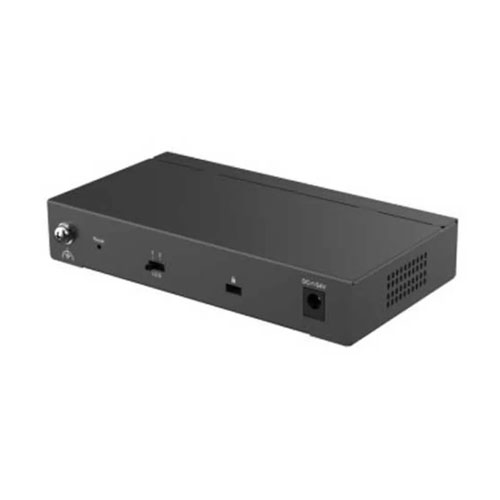

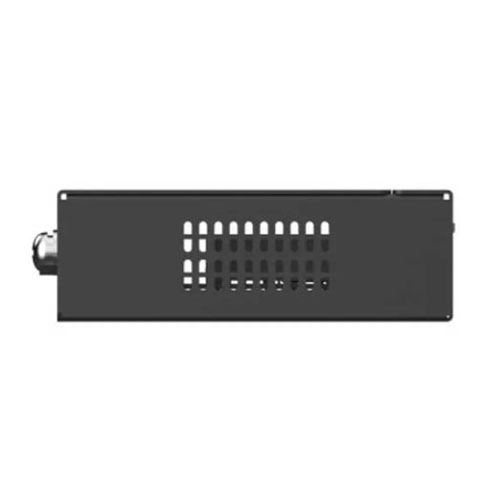

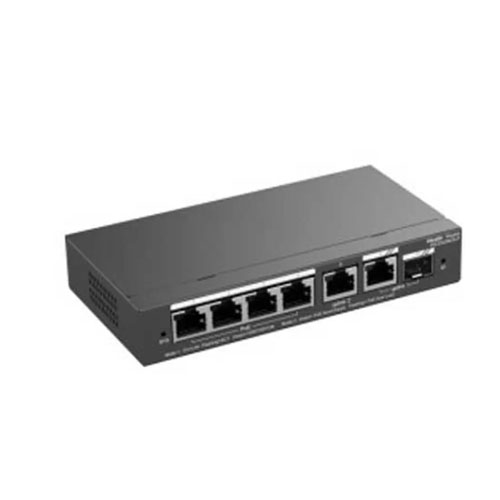

Ruijie Rg-Es206Gs-P switch Networks

Product description Ruijie Networks Rg-Es206Gs-P switch

Features:

- Managed switch with 6 Gigabit ports, with 4 PoE+ ports and 1 combo port
- Switches manageable by Smart cloud
- Recognition of IP cameras, a unique added value for CCTV networks
- Automatic loop prevention, ensuring uninterrupted service
- Free management on Ruijie Cloud anytime, anywhere

Cloud-Managed Smart PoE Switch with 6 Gigabit Ports:
- Gigabit Access PoE Switch Adapts to the Networking Needs of SMBs

Affordable Smart Cloud-Managed Switches:
- The ES200 adopts a lightweight cloud-based management design, which Provides faster response to support more complete features.

Automatic loop prevention ensures service continuity:
- The network remains connected when a network loop occurs.

The cloud simplifies your business
- SON, zero-touch cloud provisioning
- Configure VLANs in Ruijie Cloud APP
- Monitor switch statistics anytime, anywhere
- Easy maintenance, saves time and costs on your premises


Specifications:

Ports And Interfaces:
- Number of basic RJ-45 Ethernet switching ports: 6
- Basic type RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)
- SFP Combo Number of ports: 1

Connection:
- Self-negotiation: Yes
- Full bidirectional (Full duplex): Yes
- Network standards: IEEE 802.3af, IEEE 802.3at
- Flow control support: Yes
- Half-duplex transmission: Yes

Power Control:
- Energy consumption: 60W
- Input current: 1.1A
- DC input voltage: 54V
- Power source: DC/PoE

Environmental Conditions:
- Operating temperature range: 0 - 40°C
- Relative humidity range for operation: 10 - 90%

Weight And Measurements:
- Height: 26mm
- Broad: 148mm
- Weight: 900g
- Depth: 78mm

Security:
- DHCP Features: DHCP client, DHCP snooping
- Loop protection: Yes

Data Transmission:
- Switching capacity: 12 Gbit/s
- MAC address table: 4000 entries
- Forwarding rate: 8.93 Mpps

Administration Features:
- Web-based administration: Yes
- Managed through the cloud: Yes
- Switch layer: L2
- Switch type: Managed

Power Over Ethernet (Poe):
- Number of Power over Ethernet (PoE) ports: 4
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) Budget: 54W

Design:
- Stackable: Yes
- Rack mounting: Yes

Performance:
- Mean time between failure: 200000 hours

Sustainability:
- Sustainability certificates: CE, RoHS
