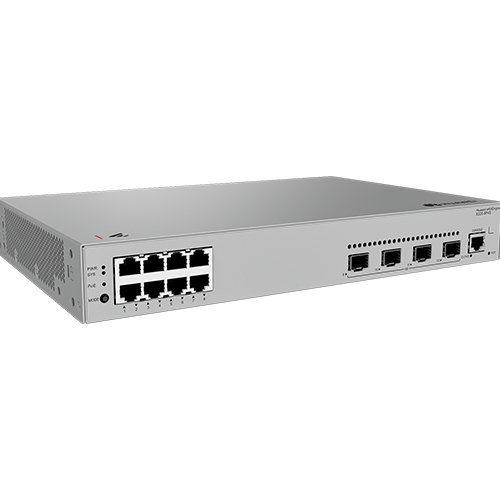

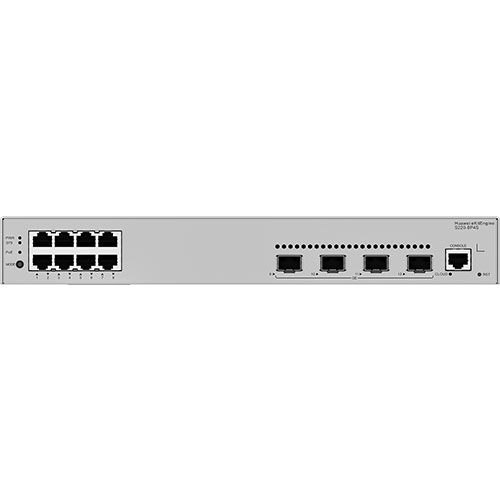

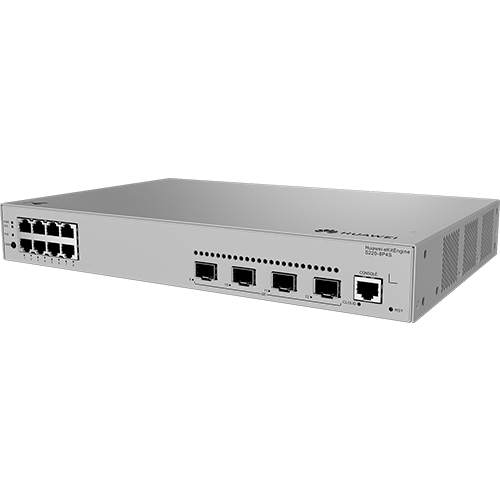

Product Description: Huawei S220-8P4S (8*10/100/1000BASE-T ports(125W PoE+),4*GE SFP ports, built-in AC power)
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
| Chassis height [U] | 1 |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.23 kg (4.92 lb) |
| Weight with packaging [kg(lb)] | 3.05 kg (6.72 lb) |
| Typical power consumption [W] | 19.99 W |
| Maximum power consumption [W] | •Without PoE: 25.09 W •Full PoE load: 166.65 W (PoE: 125 W) |
| Static power consumption [W] | 17.19 W |
| Number of fans modules | 1 |
| Maximum number of FE ports | 8 |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 8 x 10/100/1000BASE-T ports (380 W, PoE+) |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | - AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 3 A |
| Console port | RJ45 |
| Dying gasp | Supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
