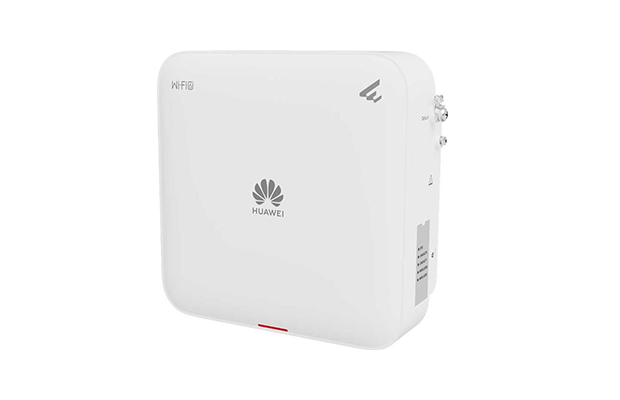

Huawei eKitEngine AP761 is an outdoor AP in compliance with the Wi-Fi 6 standard (802.11ax). It stands out with
excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability.
The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving
customers’ investment. These strengths make the AP ideal for high-density scenarios such as stadiums, squares,
pedestrian streets, and amusement parks.


 Built-in smart antennas, enabling the AP to work simultaneously on the 2.4 GHz (2×2) and 5 GHz (2×2) frequency
bands, achieving a device rate of up to 1.775 Gbps (0.575 Gbps at 2.4 GHz and 1.2 Gbps at 5 GHz)
 1 x GE electrical port + 1 x GE optical port
 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating
temperature range from –40°C to +65°C, meeting industrial-grade requirements
 Working modes: Fit, Fat, and cloud management
Feature Description
Wi-Fi 6 (802.11ax) standard
 As the latest Wi-Fi standard defined in IEEE 802.11, 802.11ax improves the user access capacity and bandwidth in
high-density access scenarios, reduces service latency, and enhances user experience.
 Multi-user multiple-input multiple-output (MU-MIMO) on both the 2.4 GHz and 5 GHz frequency bands, allowing
an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of
radio spectrum resources.
 802.11ax supports 1024-QAM, delivering 25% higher data transmission efficiency than 802.11ac (supporting 256-
QAM).
 Orthogonal Frequency Division Multiple Access (OFDMA) technology enables the AP to transmit data to multiple
STAs at the same time using different subcarriers, reducing latency and improving network efficiency.
 Spatial multiplexing technology uses basic service set (BSS) coloring mechanism to enable the AP and STAs to
distinguish overlapping BSSs, minimizing co-channel interference.

Installation Type Wall pole
Dimensions without packaging (H x W x D) [mm(in.)] 200 mm x 200 mm x 69 mm
Weight without packaging [kg(lb)] 1.91 kg
Weight with packaging [kg(lb)] 3.73 kg
Power supply mode PoE
Input voltage range [V] PoE: 802.3at/af
Service port surge protection PoE port: Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE SFP x 1
Long-term operating temperature [°C(°F)] -40°C to 65°C(From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +80°C
Long-term operating relative humidity [RH] 0% RH ～ 100% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3
Ground earthing ground
Radio number 2
MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Wi-Fi standard 2.4G:802.11b/g/n/ax 5G:802.11a/n/ac/ac wave2/ax
Radio interface Built-in directional antenna
Antenna gain 2.4G:10dBi 5G:11dBi BLE:5dBi
Maximum transmit power 2.4G: 28dBm(Max) 5G: 27dBm(Max) (note: this is MIMO total radio power, the same as: 2.4G: 25dBm/chain(Max) 5G : 24dBm/chain(Max)) BLE：＜10dBm
