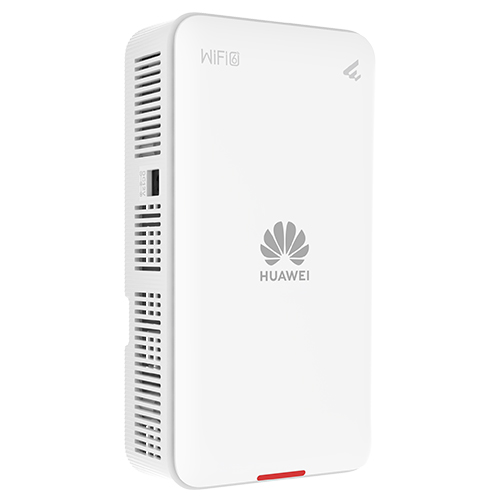

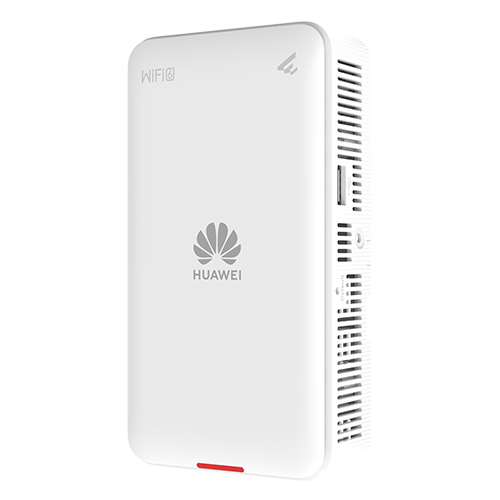

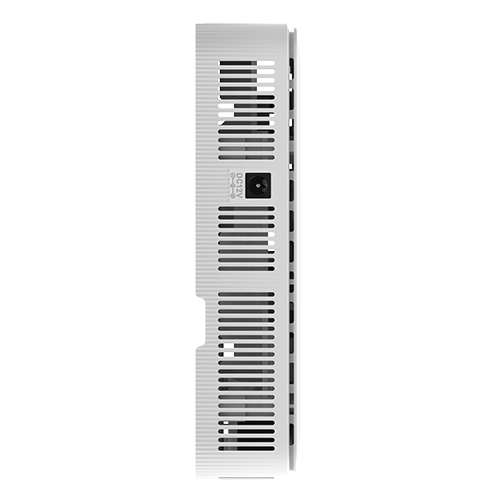

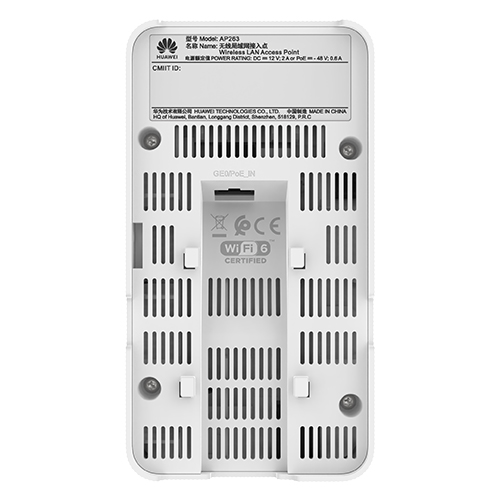

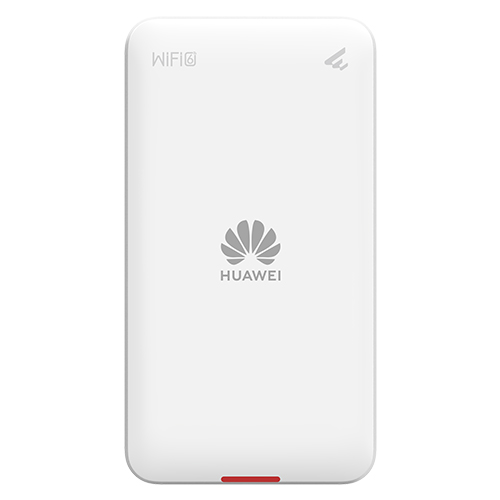

Product Description: Huawei AP263 eKitEngine AP263 is a Wi-Fi 6 (802.11ax) wall plate access point (AP)
| Installation Type | Desk,Wall,Ceiling,Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
| Weight without packaging [kg(lb)] | 0.320 kg (0.705 lb) |
| Weight with packaging [kg(lb)] | 0.542 kg (1.195 lb) |
| Console port | BLE console |
| Maximum power consumption [W] | 12 |
| Power supply mode | DC adapter,PoE |
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | 12±10% PoE: 802.3at/af |
| Service port surge protection [kV] | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 (supporting 5 W power supply) |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band | 2.4GHz,5GHz |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm |
