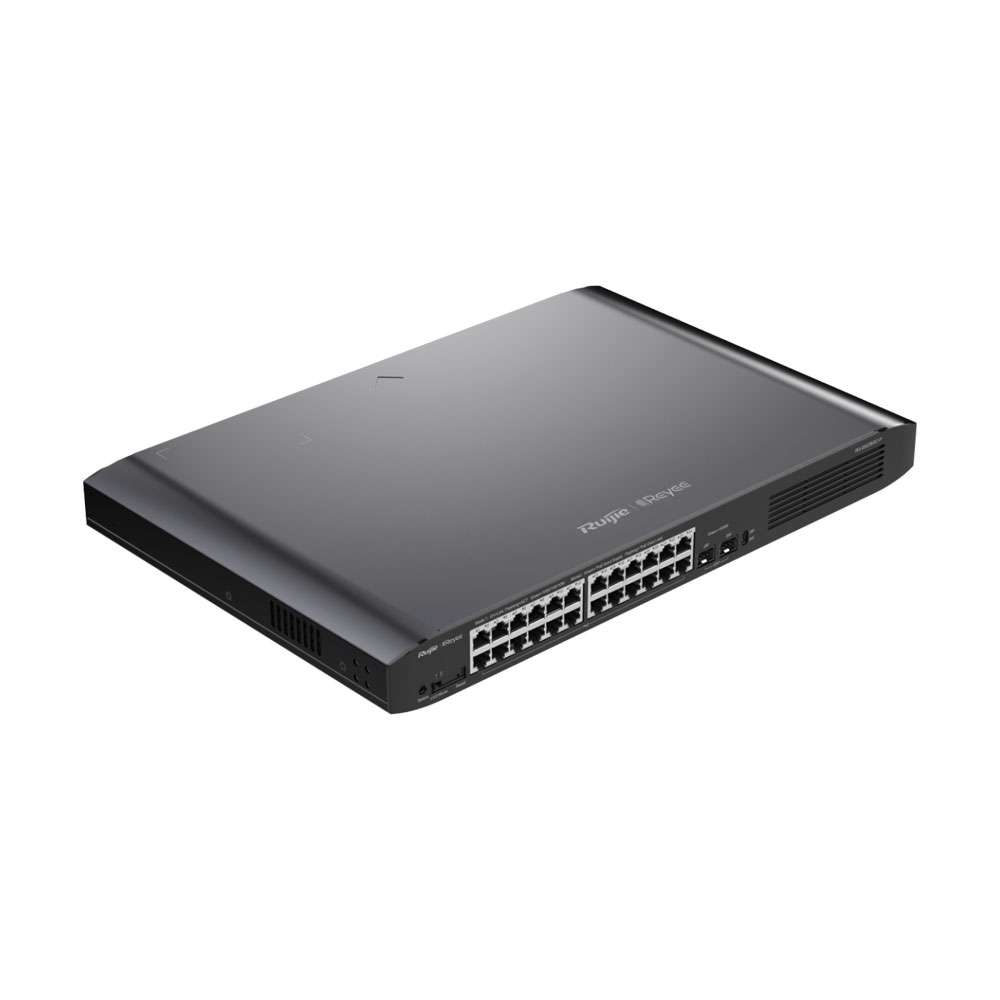

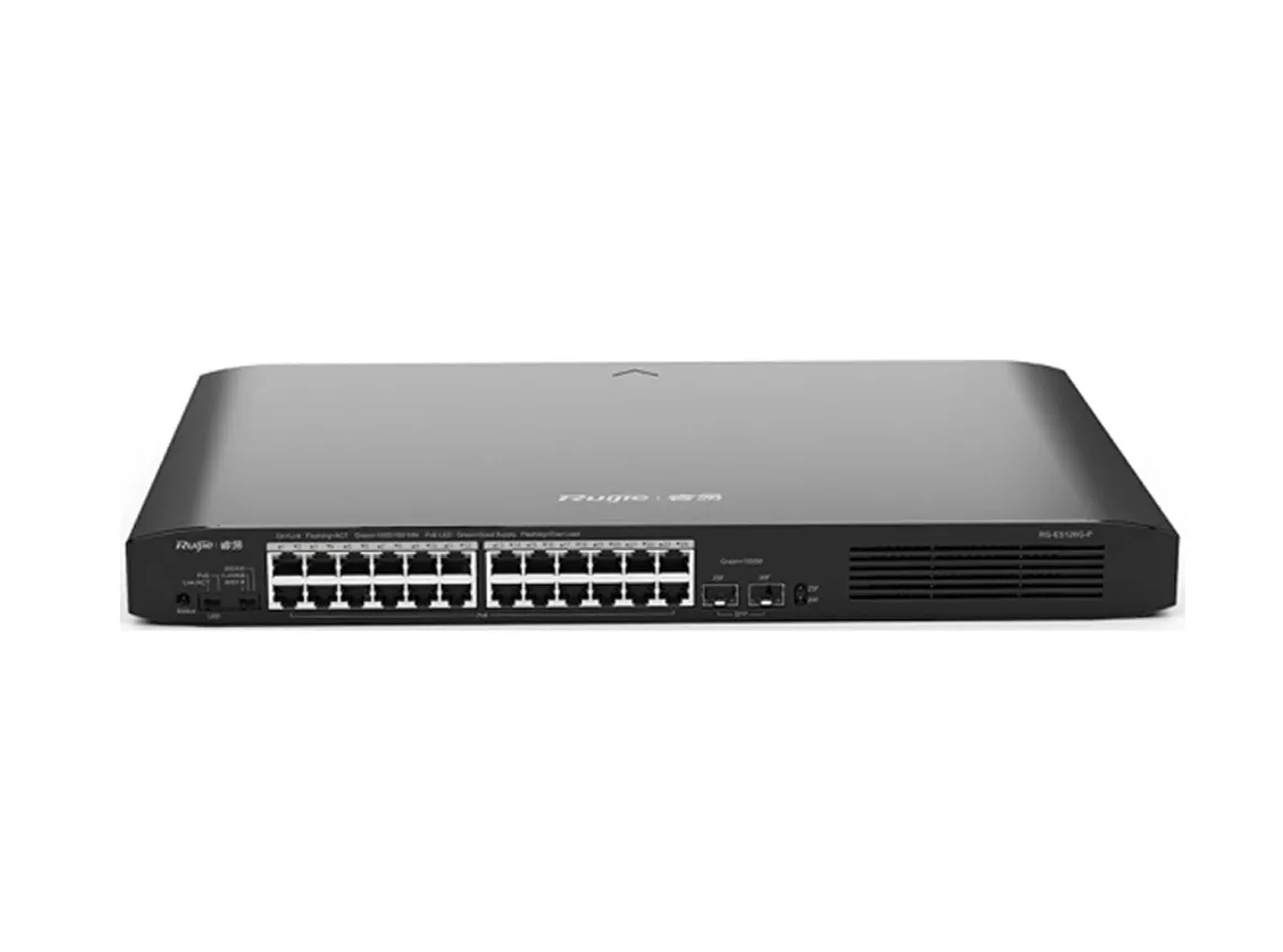

Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity. In addition, Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.
|
Model |
RG-ES226GC-P |
| Hardware specifications | |
| Ports | 24 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 370W |
| Switching capacity | 52Gbps |
| Packet forwarding rate | 38.688Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV
Contact discharge: 4KV |
| Power consumption | ≤400W |
| Power supply | Built-in power adapter |
| Dimensions (W x D x H) | 440x289x43.6mm |
| MTBF | >200K |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
